Designed For Mapping, Inspection, Surveillance And Rescue Operations.

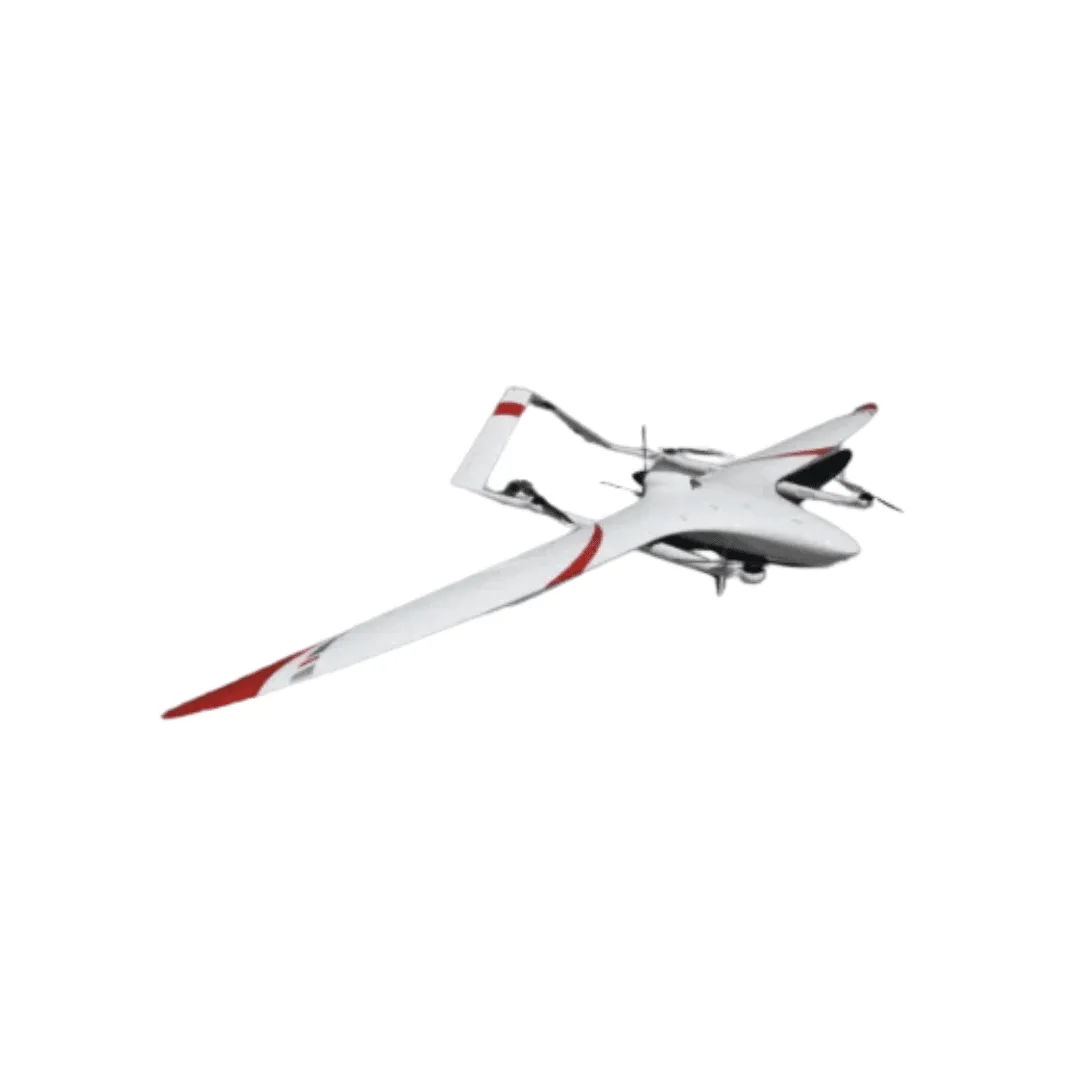

DAT-860 VTOL 5 hours endurance UAV
Description
*** หากท่านใดสนใจ สามารถติดต่อได้ที่ Line ID : @droneacademy ***
Features:
- Hybrid powered.
- Compact, light, easy to carry and deployment.
- Maximum Range: 450km.
- Endurance: 5 hours @5kg payload.
- Fly autonomously and manually
- Fly according to preloaded path of GPS point
- GPS/BDS navigation.
- One click go home or vertical landing in emergency.
- Applied in: Surveillance, mapping, communication, emergency, geological exploration, pipeline patrol, aerial observation etc.
SPECIFICATIONS OF DAT-860
| ITEM | PARAMETER | ITEM | PARAMETER |
| Length | 2.1m | Max Taking Off Weight | 26kg |
| Wingspan | 4.7m | Height of fuselage | 0.83m |
| Max Payload | 5kg | Max endurance | 5 hours |
| Max range | 450Km | Mission radius | ≥200km, with relay |
| Take-off mode | Vertically | Landing mode | Vertically |
| Power for Take-Off | Battery | Power for cruising | Oil |
| Mode of flying | Autonomous and guided mode | Wind load rating | 6 grade (13 m/s）@ take-off 7 grade (14 m/s）@ cruising |
| Material of fuselage | Fiber Carbon and Compound material | Navigation | BeiDou/GPS |
| Cruising speed | 90km/hour (25m/s) | Flying following flight path preloaded | YES |
| Max speed | 118km/hour | Tall speed | 19m/s |
| Max take-off altitude | 2500m AMSL | Ceiling | 4500m AMSL |
| Capacity of tank | 8 L | Engine for flying | internal combustion engine (electric starter） |
| Dimension of
compartment |
0.45m×0.20m×0.18m | Typical payload | Gimbals, Camera, LiDAR, etc |
