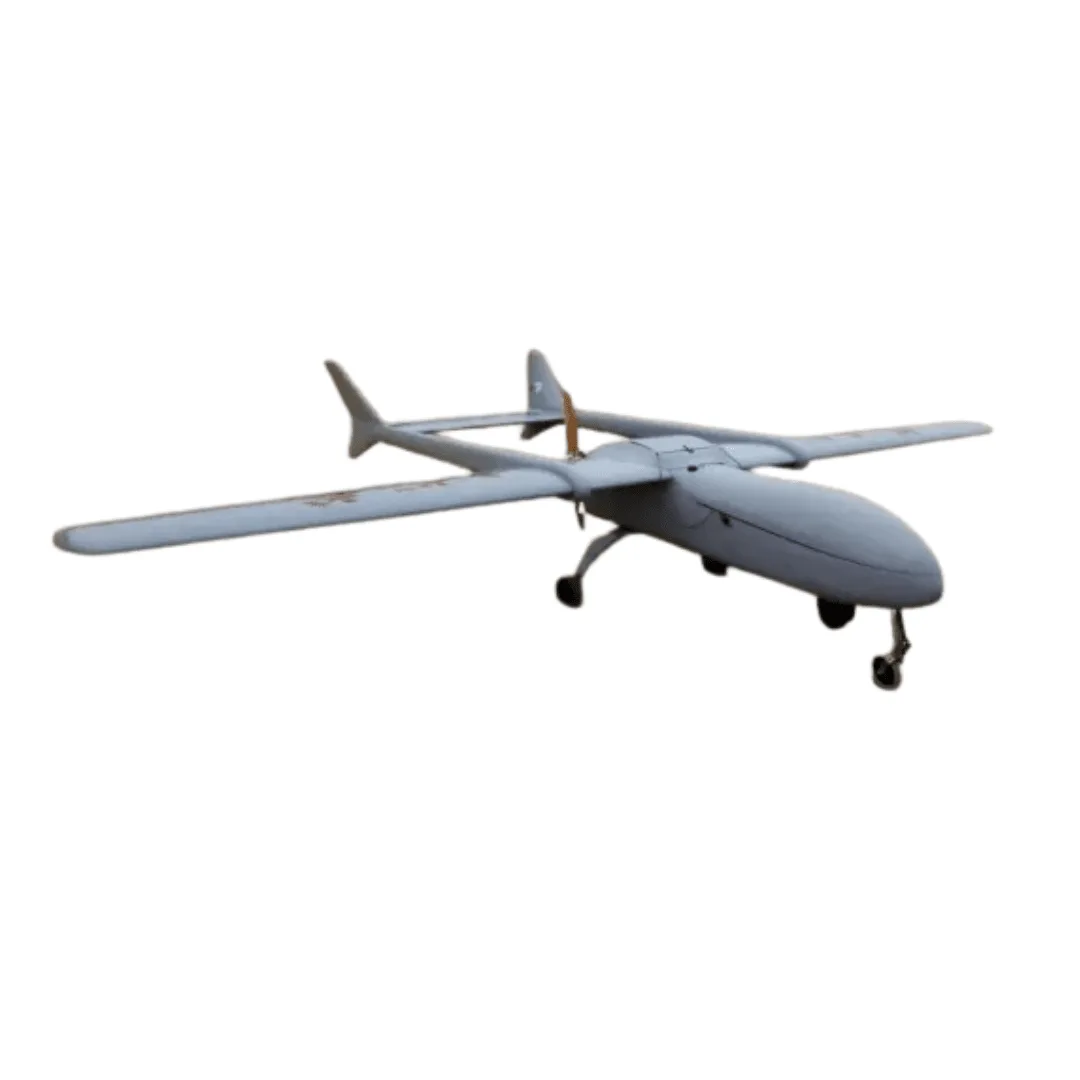

DAT-4 85kg Oil Powered Fixed-wing UAV

Widely used in various field: Transportation, surveillance, communication, patrolling, reconnaissance and attack, etc.

The UAV platform includes UAV airframe, navigation system, autopilot, power system, landing gear, servos.

Description

** สนใจติดต่อสอบถามได้ที่ LINE ID: @droneacademy **



Features:

  • Made of materials of Carbon fiber and composite material; Strong and light.
  • Payload: not less than 20kg.
  • With autopilot, GPS/BDS navigation, flight along preloaded flight path.
  • Parachute landing in emergency.
  • Maximum range: 700km.
  • Maximum endurance: 6 hours.
  • Automatically take-off and landing (option).
Specifications of DAT-4:
Dimensions Length 3.4m
Wingspan 4.62m
Height 1.12m
Size of Payload Cabin 920*340*350mm
Power Engine Gasoline engine
Tank Capacity 28L
Fuel consume rate 4Liter/hour at FULL PAYLOAD
Weight and Load Max Payload 20kg (fuel not included)
Max takeoff weight 85kg
Performance Cruising Speed 120km/hour
Max Range 700km
Ceiling 3,000m
Max Endurance 6 hours
Environment Operating  temperature -20℃~50℃
Wind Load Rating 6 grade (10.8~13.9 m/s)
Takeoff/Landing Taxiing takeoff, taxiing landing, parachute landing
Control Mode Autonomous control + remote control; Airline pre-store or uploading in real time
Navigation GPS/ BDS navigation
Maintenance Engine maintenance cycle time ≥ 150hrs



** สนใจติดต่อสอบถามได้ที่ LINE ID: @droneacademy **
